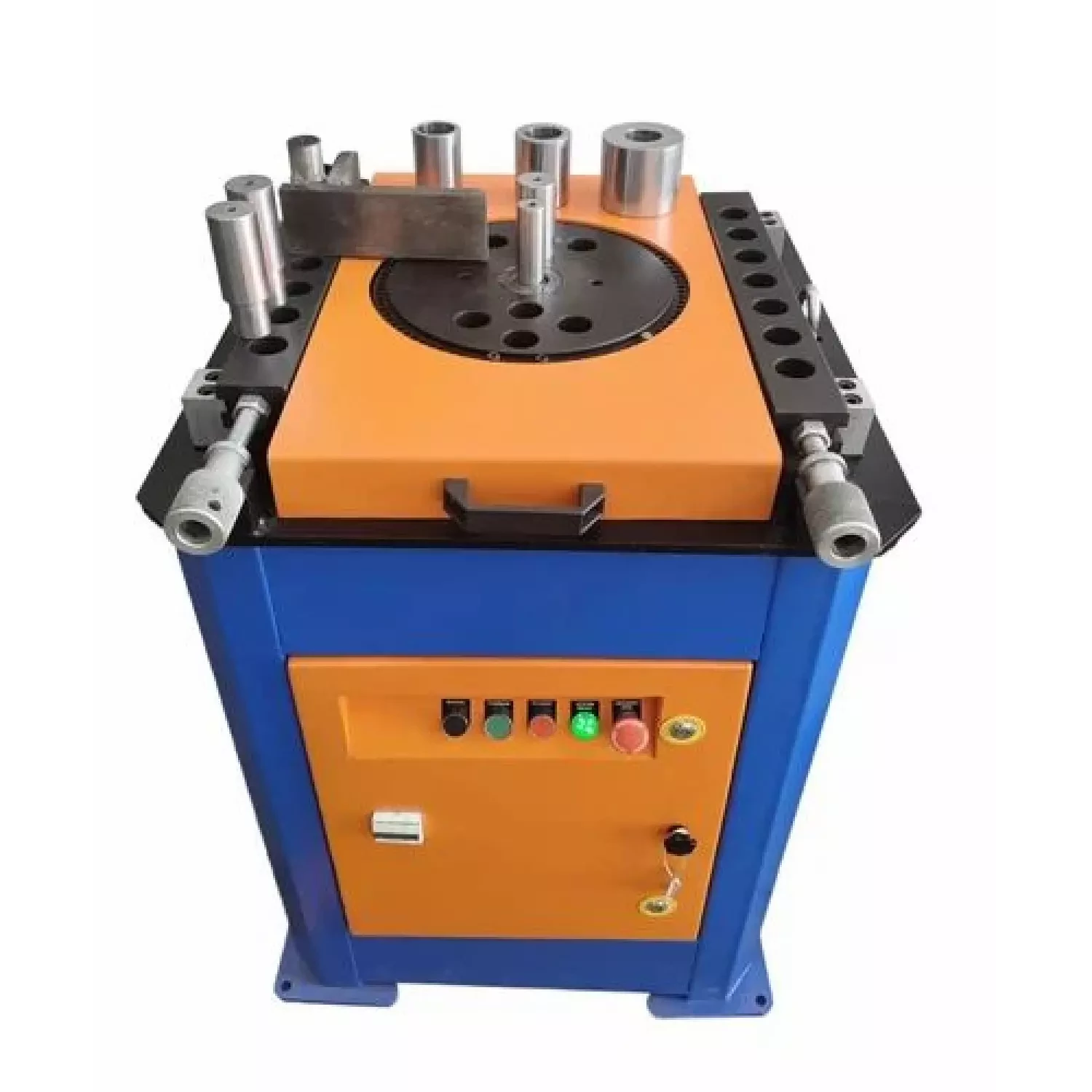

Reinforcement 42 Bar Bending Machine
Reinforcement 42 Bar Bending Machine Details
When reinforcement bars must be shaped repeatedly for columns, beams, slabs and other structural work, dependable bending control becomes an important part of fabrication efficiency. Our Reinforcement 42 Bar Bending Machine is developed for this purpose, combining a robust machine structure with semi-automatic operation and controlled electric bending. Designed for TMT bars up to 32 mm, it supports bending up to 180 degrees and is suitable for reinforcement fabrication requirements in Ahmedabad, Gujarat.
Engineered for Demanding Rebar Fabrication
The machine incorporates a strengthened body frame with increased vertical and horizontal member sizes to provide greater rigidity during bending. Its sheet metal body is manufactured using CNC punching and bending processes, while CNC laser cutting, CNC turning and VMC processes are used for machine components. This manufacturing approach supports dimensional consistency and a sturdy working structure for repetitive reinforcement applications.
Controlled Bending Across Common Bar Grades
The Reinforcement 42 model accommodates TMT bar diameters up to 32 mm and offers a maximum bending angle of 180 degrees. Its 50–100 mm bending-radius specification provides flexibility for commonly required reinforcement shapes. The capacity chart covers FE 500, FE 500D, FE 550D and FE 500S bar specifications, allowing users to assess the applicable bar quantity according to diameter and material grade.
| Specification | Details |
|---|---|
| Bar Dimensions | Up to 32 mm |
| TMT Bar Steel Diameter | Up to 32 mm |
| Automation Grade | Semi Automatic |
| Maximum Bending Angle | 180 Degree |
| Maximum Bending Radius | 50–100 mm |
| Bend Direction | Clockwise |
| Power Source | Electric |
| Motor Speed | 1440 RPM |
Features Focused on Reliable Operation
- Rigid frame designed to withstand loads during bending operations.
- Sheet metal body manufactured through CNC punching and bending.
- CNC laser cutting, CNC turning and VMC processes used for machine components.
- Heavy-duty planetary gearbox filled with synthetic grease.
- Under-voltage and over-voltage protection.
- Maintenance-free electrical braking system.
- Imported fully enclosed IP55 foot pedal.
- Rigid sliding block with V-guide for enhanced ruggedness.
- Powder-coated body for protection and improved appearance.
- Low-noise and low-vibration operation.
- Designed for ease of operation and long service life.
Capacity Reference for Reinforcement Processing
| Bar Grade | 32 mm | 25 mm | 20 mm | 16 mm | 12 mm | 10 mm | 8 mm |
|---|---|---|---|---|---|---|---|
| FE 500 | 1 | 1 | 1 | 2 | 3 | 4 | 6 |
| FE 500D | 1 | 1 | 1 | 2 | 3 | 4 | 5 |
| FE 550D | 1 | 1 | 1 | 2 | 3 | 4 | 5 |
| FE 500S | 1 | 1 | 1 | 2 | 3 | 4 | 5 |
For specifications, availability and application requirements, contact us in Ahmedabad. Share your required bar diameter and fabrication needs so the machine configuration can be evaluated for your project.
