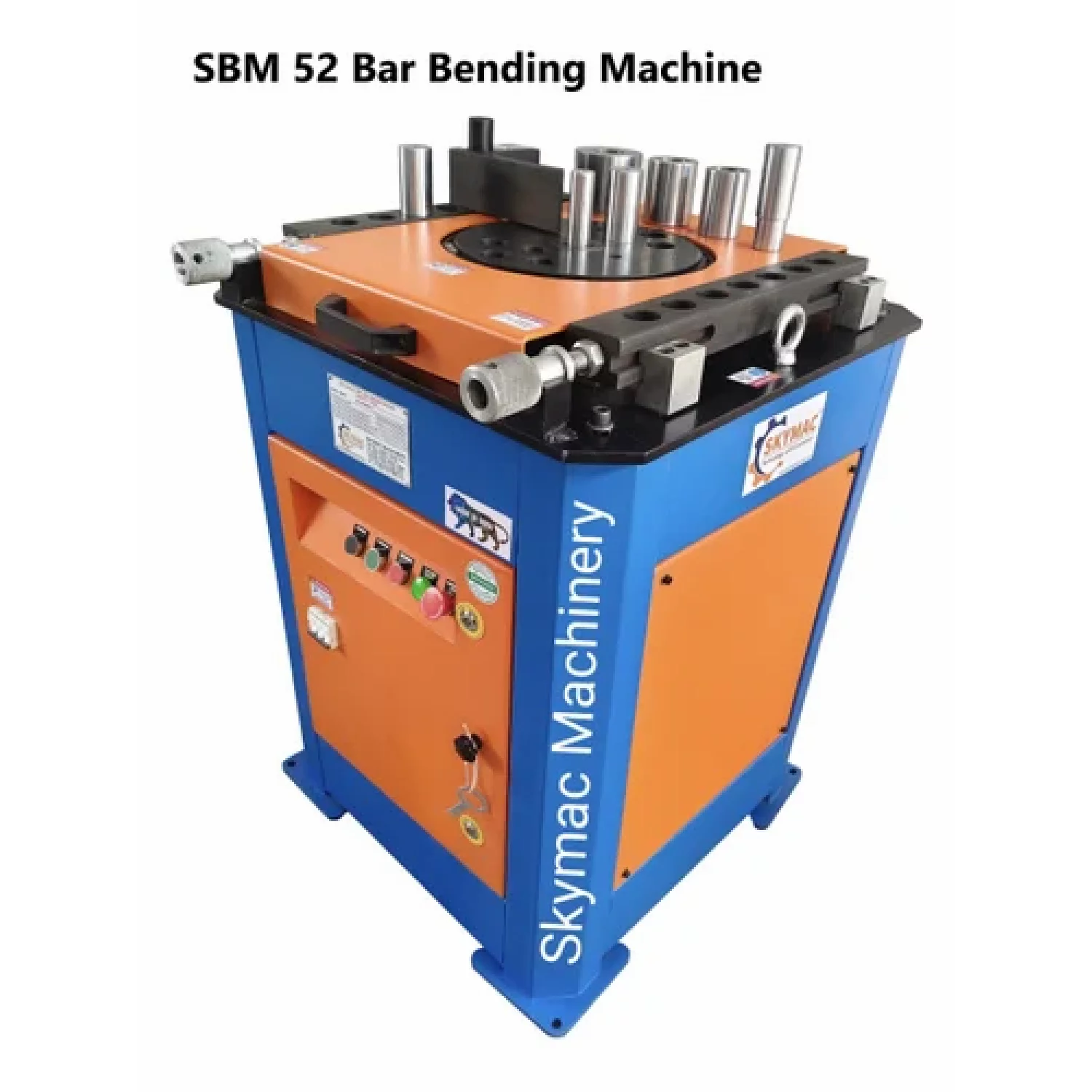

SBM 52 Bar Bending Machine
SBM 52 Bar Bending Machine Details
When a project has regular reinforcement bending work, machine size and working capacity become important points before purchase. We manufacture and supply the SBM 52 Bar Bending Machine in Ahmedabad, Gujarat, with a 420 mm bend wheel, 3.7 kW (5 HP) motor and a steel machine body. The model is made for construction and rebar bending applications where repeated bar shaping forms part of the daily work.
A Machine Built with More Working Stability
The frame design of the SBM 52 has been improved by increasing the size of its vertical and horizontal members. This gives the structure a more robust and steady build during bending operations. We manufacture the sheet metal body using CNC punching and bending, while CNC laser cutting, CNC turning and VMC are used for manufacturing machine parts.
The complete machine body is powder coated for surface protection and a cleaner finish. A rigid sliding block with V-guide adds ruggedness to the working arrangement.
Details That Matter During Operation
- Steel body with improved frame construction
- Automatic automation grade
- 3.7 kW (5 HP) motor
- 420 mm bend wheel diameter
- 9 RPM bend wheel speed
- Heavy-duty planetary gearbox with synthetic grease
- Under-voltage and over-voltage protection
- Maintenance-free electrical braking system
- Fully enclosed IP55 foot pedal
- Low-noise and low-vibration operation
- Rigid sliding block with V-guide
- Powder-coated machine body
SBM 52 Technical Specifications
| Model Name / Number | SBM 52 |
|---|---|
| Automation Grade | Automatic |
| Body Material | Steel |
| Machine Dimensions | 1050 x 780 x 900 mm (L x W x H) |
| Motor Power | 3.7 kW (5 HP) |
| Bend Wheel Speed | 9 RPM |
| Bend Wheel Diameter | 420 mm |
Bar Capacity by Grade and Diameter
The SBM 52 capacity depends on the bar diameter and steel grade. The supplied capacity chart covers FE 500, FE 500D, FE 550D and FE 500S bars. This gives buyers a clear reference while checking the machine against their reinforcement work.
| Bar Grade | 40 mm | 36 mm | 32 mm | 25 mm | 20 mm | 16 mm | 12 mm | 10 mm | 8 mm |
|---|---|---|---|---|---|---|---|---|---|
| FE 500 | - | 1 | 1 | 1 | 2 | 2 | 3 | 4 | 6 |
| FE 500D | - | 1 | 1 | 1 | 2 | 3 | 4 | 5 | - |
| FE 550D | - | 1 | 1 | 1 | 2 | 3 | 4 | 5 | - |
| FE 500S | - | 1 | 1 | 2 | 2 | 3 | 4 | 5 | - |
From Ahmedabad, Gujarat, we supply the SBM 52 for construction and reinforcement applications. If you have a particular bar grade, diameter or bending requirement, send us the details. We'll help you check the available capacity information and provide the relevant machine details before you proceed.
