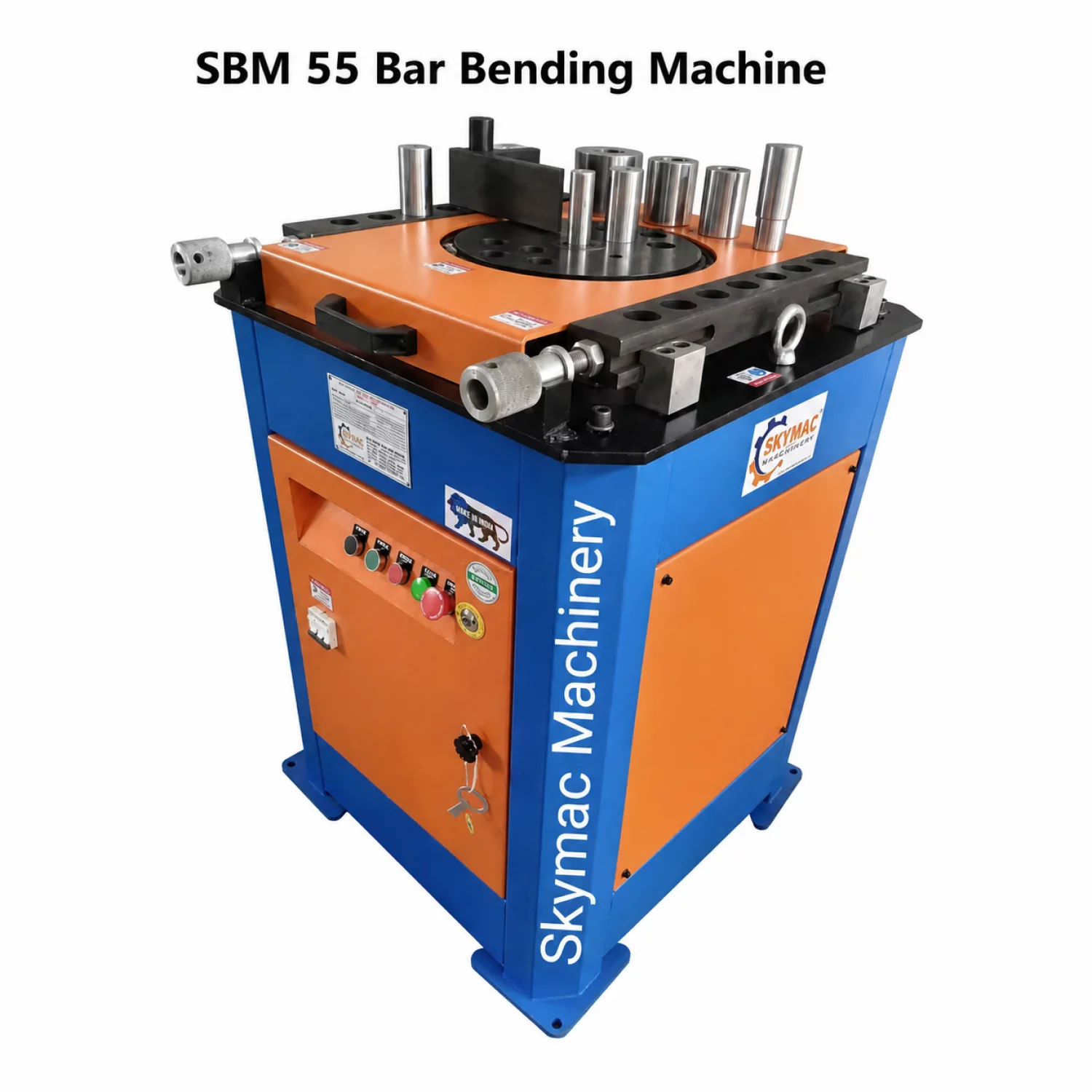

SBM 55 Bar Bending Machine

Large reinforcement jobs often involve repeated bending of TMT bars, so the machine needs to be built around steady working and the required bar capacity. We manufacture and supply the SBM 55 Bar Bending Machine in Ahmedabad, Gujarat, with a 500 mm bend wheel, 5.5 kW (7.5 HP) motor and 500 kg machine weight. Its design is suited for construction and reinforcement work where heavier bar bending requirements are handled regularly.

A Strong Build for Heavy Bending Work

We have improved the machine frame by increasing the size of its vertical and horizontal members. This gives the SBM 55 a more robust and steady structure during bending operations. The sheet metal body is manufactured using CNC punching and bending, while CNC laser cutting, CNC turning and VMC are used for machine parts.

The complete body is powder coated for better surface protection and finish. A rigid sliding block with V-guide adds ruggedness to the working arrangement, while the heavy-duty planetary gearbox is filled with synthetic grease.

Features That Support Daily Operation

• Robust machine frame for bending operations
• Steel construction with powder-coated body
• 5.5 kW (7.5 HP) motor
• 500 mm bend wheel diameter
• 5 RPM bend wheel speed
• Heavy-duty planetary gearbox with synthetic grease
• Under-voltage and over-voltage protection
• Maintenance-free electrical braking system
• Fully enclosed IP55 foot pedal
• Rigid sliding block with V-guide
• Low-noise and low-vibration operation
• Easy operation and long machine life

SBM 55 Machine Specifications

Capacity Across TMT Bar Grades

The SBM 55 capacity changes according to the bar diameter and TMT grade. The supplied chart covers TMT FE 500, FE 500D and FE 550-FE 600 grades. Buyers can use the following figures when checking the machine against their bar bending requirements.

We manufacture the SBM 55 Bar Bending Machine in Ahmedabad, Gujarat, and supply it for construction and reinforcement applications. If your project involves TMT bar bending, share the bar grade, diameter and expected work requirement with us. We'll provide the relevant machine details so you can check whether the SBM 55 fits your application.
