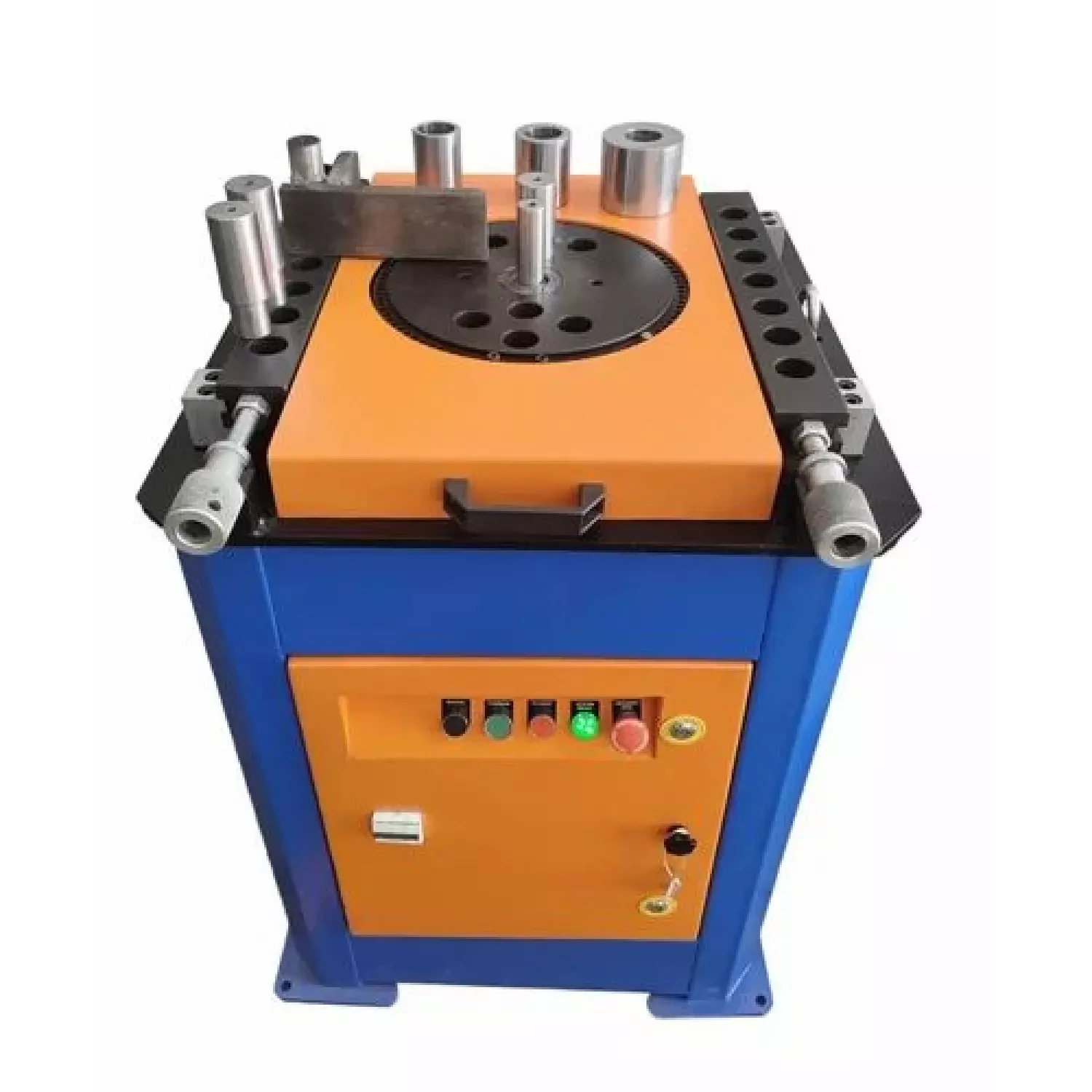

SBM 55 Rebar Bending Machine
SBM 55 Rebar Bending Machine Details
Rebar work needs a machine that can handle regular bending work without making the job unnecessarily complicated. Our SBM 55 Rebar Bending Machine is made for this purpose, with a sturdy structure and a 5.5 kW (7.5 HP) motor. We manufacture this model in Ahmedabad for construction and reinforcement work where TMT bars need controlled bending.
Built for demanding rebar bending work
The machine has an improved body frame with larger vertical and horizontal members. This gives the structure better steadiness during bending operations. We manufacture the sheet metal body using CNC punching and bending, while CNC laser cutting, CNC turning and VMC processes are used for machine parts.
The SBM 55 works with a bend wheel speed of 5 RPM. Its 500 kg machine weight and 925 x 1200 x 1210 mm dimensions provide a substantial working structure for regular site and workshop use.
Features that matter during daily operation
- Robust machine frame designed to withstand bending loads
- Sheet metal body manufactured through CNC punching and bending
- CNC laser cutting, CNC turning and VMC used for machine parts
- Heavy-duty planetary gearbox filled with synthetic grease
- Under-voltage and over-voltage protection
- Maintenance-free electrical braking system
- Fully enclosed IP55 foot pedal
- Rigid sliding block with V-guide for added ruggedness
- Powder-coated machine body for protection and finish
- Noise and vibration-free operation
- Easy operation for regular rebar bending work
SBM 55 technical details at a glance
| Parameter | Specification |
|---|---|
| Model | SBM55 |
| Bend Wheel Speed | 5 RPM |
| Motor Power | 5.5 kW (7.5 HP) |
| Dimensions L × W × H | 925 × 1200 × 1210 mm |
| Weight | 500 kg |
Capacity for different TMT bar grades
The capacity chart covers TMT bar diameters from 8 mm to 40 mm. The number of bars that can be handled at one time varies with bar diameter and grade. The available figures are given below so buyers can match the machine with their actual rebar requirement.
| Bar Dia (mm) | FE 500 | FE 500D | FE 550-FE 600 |
|---|---|---|---|
| 40 | 1 | 1 | 1 |
| 36 | 1 | 1 | 1 |
| 32 | 1 | 1 | 1 |
| 25 | 2 | 2 | 2 |
| 20 | 2 | 2 | 2 |
| 16 | 3 | 3 | 3 |
| 12 | 5 | 5 | 4 |
| 10 | 7 | 7 | 6 |
| 8 | 8 | 8 | 8 |
We supply the SBM 55 Rebar Bending Machine from Ahmedabad for buyers looking for a heavy-duty rebar bending setup. Share your required bar diameter and application with us, and we'll help you check the suitable capacity before placing your enquiry.
