SBM 42 Rebar Bending Machine
SBM 42 Rebar Bending Machine Details

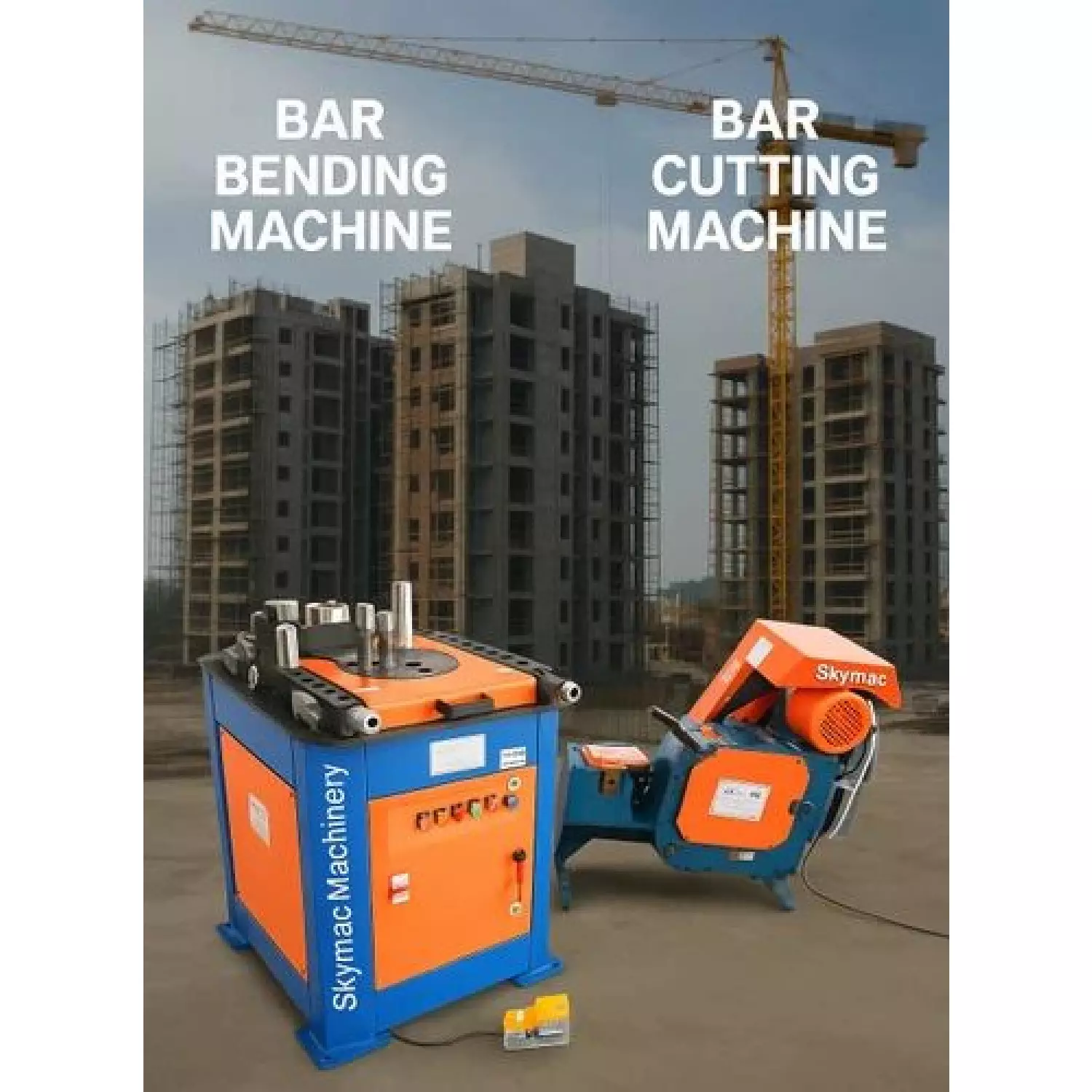

Rebar bending needs a clear match between the bar size and the machine capacity. Our SBM 42 Rebar Bending Machine is made for reinforcement work where bars need to be bent repeatedly to the required angle. We manufacture and supply this semi-automatic model in Ahmedabad, Gujarat, with electric power operation and bending capacity up to 32 mm TMT bar.
Practical Bending for Reinforcement Work
The SBM 42 supports bending up to 180 degrees with clockwise bending direction. Its machine frame has been improved with larger vertical and horizontal members, giving the structure a more steady build during bending operations.
We manufacture the sheet metal body using CNC punching and bending. CNC laser cutting, CNC turning and VMC are also used for manufacturing machine parts. The body is completely powder coated for better protection and finish.
Working Features of the SBM 42
- Semi-automatic operation
- Electric power source
- TMT bar bending up to 32 mm
- Maximum bending angle of 180 degrees
- Clockwise bending direction
- Rigid sliding block with V-guide
- Heavy-duty planetary gearbox filled with synthetic grease
- Under-voltage and over-voltage protection
- Maintenance-free electrical braking system
- Fully enclosed IP55 foot pedal
- Low-noise and low-vibration operation
- Powder-coated machine body
SBM 42 Specification Sheet
| Bar Dimensions | Up to 32 mm |
|---|---|
| Max. Bending Radius | 50–100 mm |
| Automation Grade | Semi Automatic |
| Max. Bending Angle | 180 degree |
| Bend Direction | Clockwise |
| Power Source | Electric |
| Motor Speed | 1440 RPM |
| TMT Bar Steel Diameter | Up to 32 mm |
Bar Capacity by Steel Grade
The bending capacity varies with the bar diameter and steel grade. The SBM 42 capacity chart covers FE 500, FE 500D, FE 550D and FE 500S bars. The figures below show the listed number of bars that can be handled for each diameter.
| Bar Grade | 36 mm | 32 mm | 25 mm | 20 mm | 16 mm | 12 mm | 10 mm | 8 mm |
|---|---|---|---|---|---|---|---|---|
| FE 500 | - | 1 | 1 | 1 | 2 | 3 | 4 | 6 |
| FE 500D | - | 1 | 1 | 1 | 2 | 3 | 4 | 5 |
| FE 550D | - | 1 | 1 | 1 | 2 | 3 | 4 | 5 |
| FE 500S | - | 1 | 1 | 1 | 2 | 3 | 4 | 5 |
Made for Construction and Rebar Preparation
The SBM 42 can be used where reinforcement bars need regular bending before placement in construction work. Its combination of a robust frame, V-guide sliding block, electric braking system and foot pedal operation is suited to repeated bending tasks.
We manufacture and supply the SBM 42 Rebar Bending Machine from Ahmedabad, Gujarat. If you have a specific bar diameter, steel grade or bending requirement, share the details with us. We'll provide the relevant capacity information and machine details for your work.
