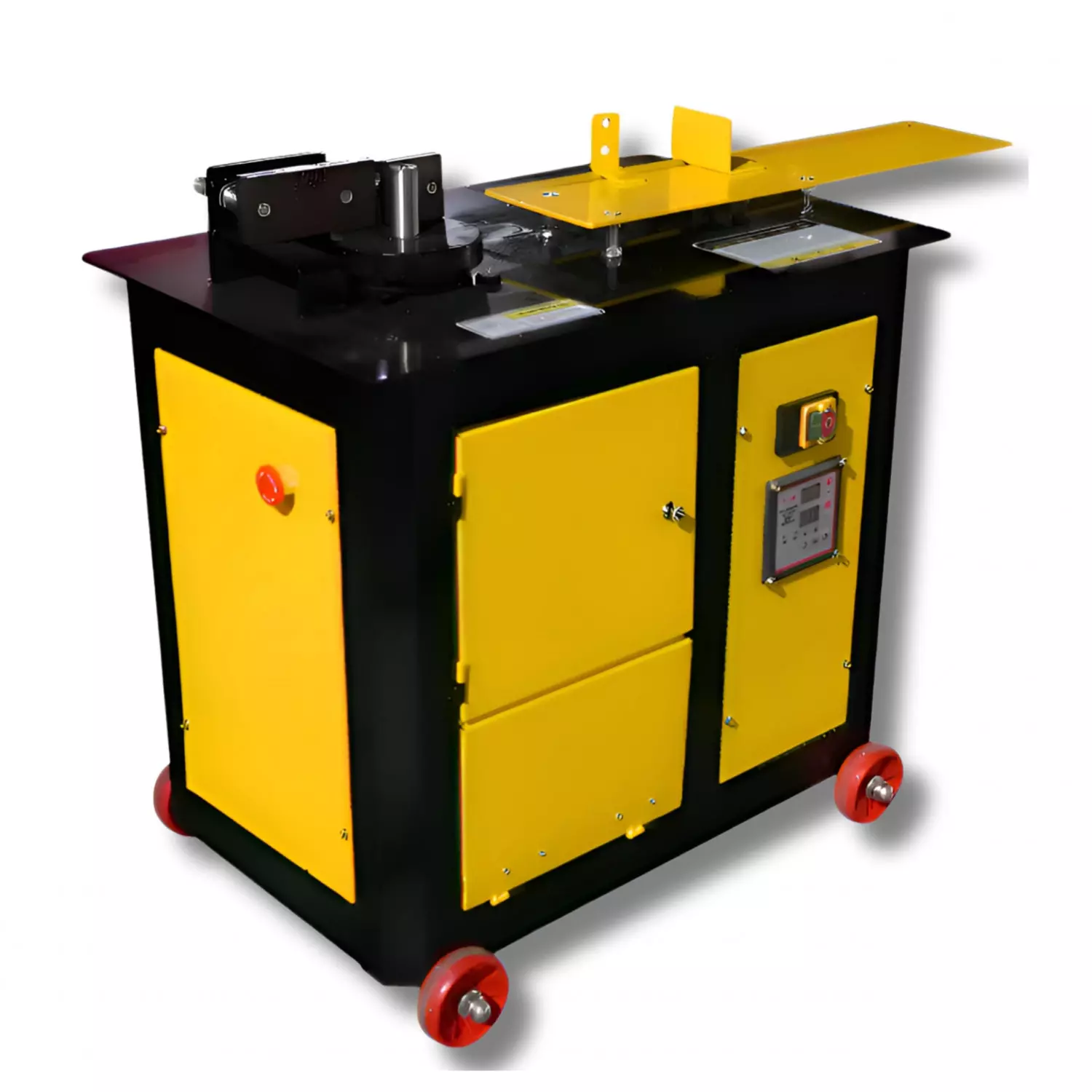

TMT BAR RING MAKING MACHINE
TMT BAR RING MAKING MACHINE Details
Consistent stirrup production starts with controlled bending, repeatable angles and a machine that can keep pace with fabrication requirements. Our TMT Bar Ring Making Machine is developed for industrial rebar fabrication where accuracy, operating convenience and dependable performance are important. The GF 20D model handles 4–16 mm TMT bars and supports bending angles up to 180 degrees, making it suitable for producing rings and stirrup shapes with practical semi-automatic operation. We manufacture and supply this machine from Ahmedabad for construction and reinforcement fabrication requirements across Gujarat.
Purpose-Built for TMT Ring and Stirrup Fabrication
The GF 20D combines an electrically powered bending mechanism with two slide-type angle selectors, allowing operators to set bending positions for angles from 0 to 180 degrees. Its two standard foot-pedal controls enable hands-free operation, helping the operator manage bar positioning while controlling the bending cycle. With a bending speed of 24 RPM, the machine is designed for productive repetitive fabrication work.
Rigid Construction for Repeated Bending
A 6 mm thick top plate and high-rigidity iron body provide a solid working structure. The machine is fitted with ultra-high-hardness accessories and an adjustable fender designed for extended service use. A copper-wire brake motor operating at 1440 RPM provides the electrical drive, while the clockwise bending direction keeps operation straightforward for regular production tasks.
| Model | GF 20D |
|---|---|
| Brand | QSM Machineries |
| Material | TMT Bar |
| Capacity | 4–16 mm TMT Bar |
| Maximum Bending Capacity | 16 mm |
| Maximum Bending Angle | 180 degrees |
| Bending Speed | 24 RPM |
| Automation Grade | Semi-Automatic |
| Power Source | Electrical |
| Phase | 3 Phase |
| Voltage | 440 V |
| Body Material | Iron |
| Weight | 102 kg |
Operator-Friendly Safety and Control
- Emergency stop and stop switch for quick machine shutdown.
- Two foot-pedal controls for convenient hands-free operation.
- Adjustable angle selectors for controlled bending from 0 to 180 degrees.
- High-hardness accessories designed for prolonged service.
- User-friendly operation with easy installation.
- International-standard copper-wire brake motor.
- Clockwise bending configuration for straightforward operation.
Production Capability at a Practical Scale
With a stated production capacity of up to 4,000 stirrups in 8 hours, the GF 20D is positioned for repetitive industrial fabrication. Its 4–16 mm working range makes it useful for routine TMT ring and stirrup requirements while its semi-automatic arrangement keeps operation practical for fabrication teams.
For machine availability, technical specifications, packaging requirements or project-specific enquiries, connect with our team in Ahmedabad. We can provide the relevant details and assist you in selecting the appropriate configuration for your TMT fabrication work.
