Reinforcement 52 Bar Bending Machine
Reinforcement 52 Bar Bending Machine Details

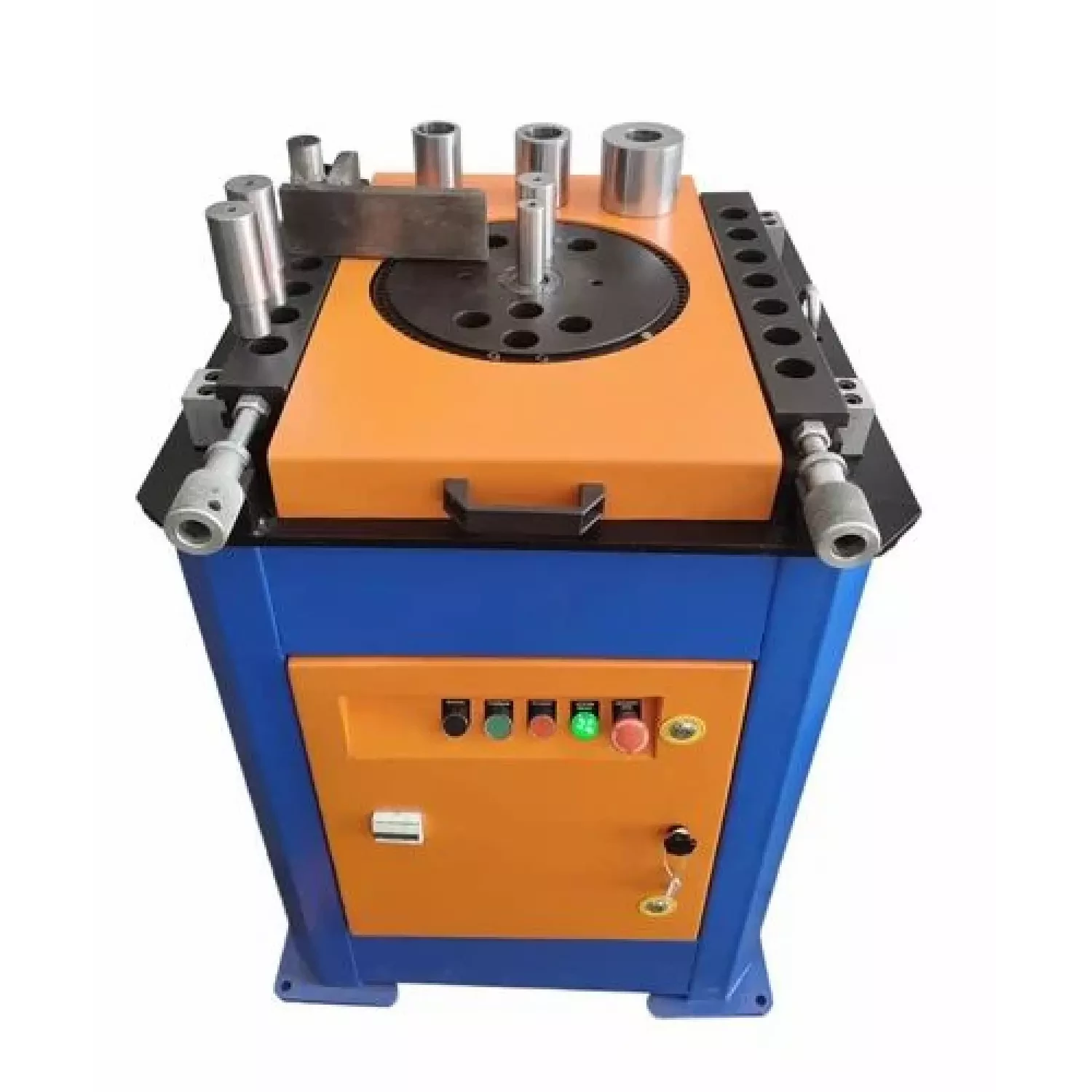

Accurate reinforcement shaping begins with controlled bending, stable machine construction and dependable movement. The Reinforcement 52 Bar Bending Machine is engineered for demanding TMT bar fabrication work where repeatable bends and steady operation matter on every batch. Designed with a steel body and a 420 mm bend wheel, this Skymac model combines automatic operation with a robust mechanical arrangement suitable for professional reinforcement processing in Ahmedabad, Gujarat.
Built Around Stable and Precise Bar Forming
The SBM 52 is developed with an improved body frame in which the vertical and horizontal members are strengthened to provide greater rigidity during bending. Its components are manufactured using CNC punching and bending, advanced CNC laser cutting, CNC turning and VMC processes, supporting dimensional consistency across critical machine parts. The rigid sliding block with V-guide further contributes to smooth movement and rugged performance during repeated operations.
Engineering Features for Continuous Site Work
- Steel machine body designed to withstand loads generated during reinforcement bending.
- Heavy-duty planetary gearbox filled with synthetic grease for dependable transmission.
- Under-voltage and over-voltage protection for added electrical safety.
- Maintenance-free electrical braking system for controlled operation.
- Imported fully enclosed IP55 foot pedal for practical operating conditions.
- Powder-coated body finish for improved surface protection and appearance.
- Low-noise and low-vibration operation for a more comfortable working environment.
- Rigid V-guide sliding arrangement for enhanced stability and service life.
- Simple operation suitable for regular reinforcement fabrication activities.
Technical Details at a Glance
| Model | SBM 52 |
| Brand | Skymac |
| Automation Grade | Automatic |
| Body Material | Steel |
| Motor Power | 3.7 kW (5 HP) |
| Bend Wheel Speed | 9 RPM |
| Bend Wheel Diameter | 420 mm |
| Machine Dimensions | 1050 x 780 x 900 mm (L x W x H) |
Capacity Reference for Different TMT Grades
The Reinforcement 52 Bar Bending Machine accommodates different bar diameters and steel grades according to the specified capacity chart. For FE 500, it can bend up to 2 bars of 20 mm, 3 bars of 12 mm and 6 bars of 8 mm in the listed configuration. FE 500D, FE 550D and FE 500S capacities vary according to diameter and material strength, allowing operators to select the appropriate working combination for their reinforcement requirements.
| Bar Grade | 20 mm | 16 mm | 12 mm | 10 mm | 8 mm |
|---|---|---|---|---|---|
| FE 500 | 2 | 2 | 3 | 4 | 6 |
| FE 500D | 2 | 2 | 3 | 4 | 5 |
| FE 550D | 2 | 2 | 3 | 4 | 5 |
| FE 500S | 2 | 2 | 3 | 4 | 5 |
For project-specific requirements, bar diameter, grade and expected production conditions can be discussed before selecting the machine configuration. Get in touch with our team in Ahmedabad for product specifications, availability and commercial details tailored to your reinforcement fabrication needs.
