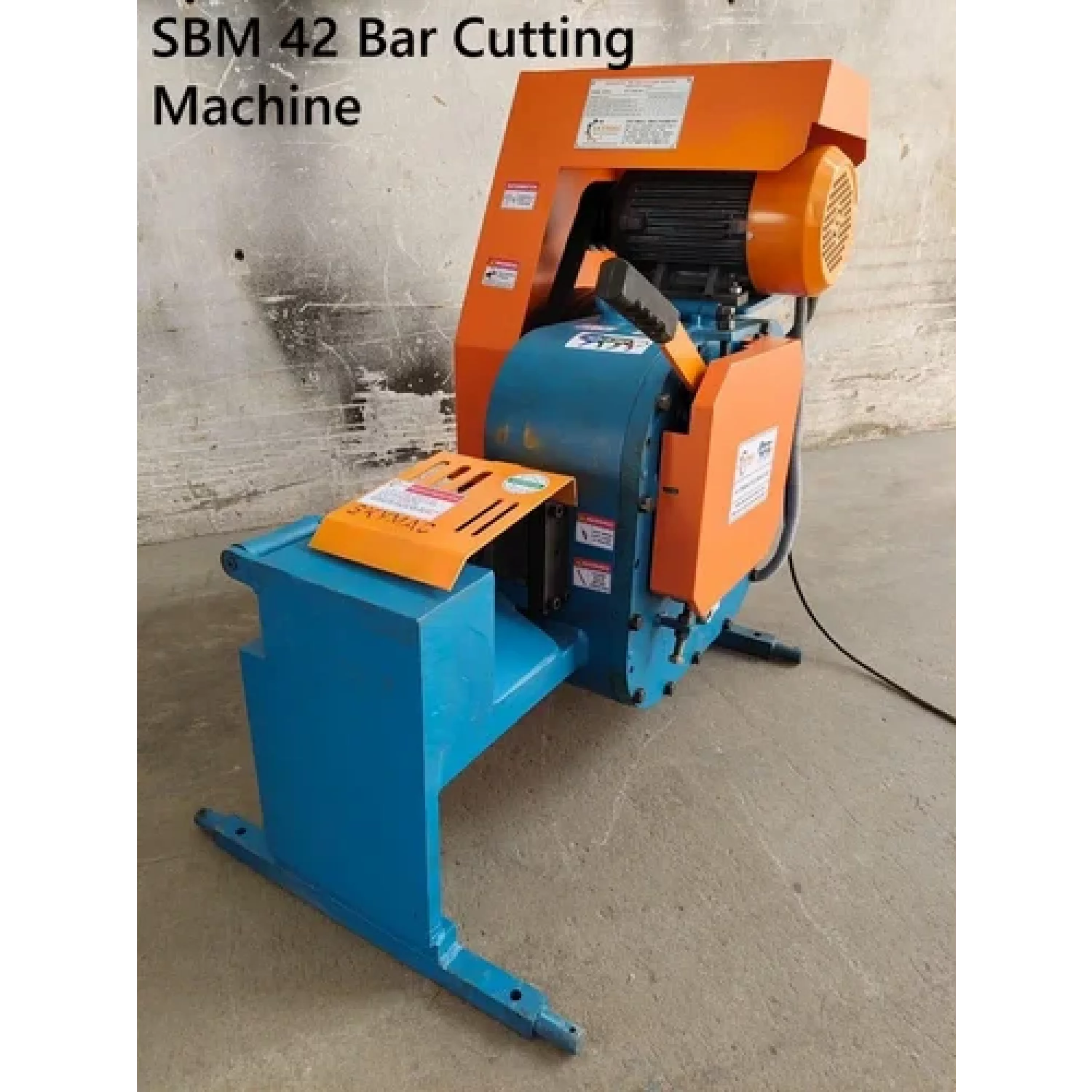

SCM 42 Bar Cutting Machine
SCM 42 Bar Cutting Machine Details
Bar cutting work becomes much easier to organise when the machine is made for repeated reinforcement cutting. Our SCM 42 Bar Cutting Machine is developed for construction sites where steel bars need to be cut in regular cycles. We manufacture and supply this semi-automatic model from Ahmedabad, Gujarat, with a 3.7 kW (5 HP) motor, 87 strokes per minute capacity and a machine weight of 449 kg.
Built Around Smooth and Controlled Cutting
The SCM 42 uses a double-stage helical gearbox design to reduce speed and support longer blade life. The gears undergo heat treatment and precision grinding, helping the gear system work smoothly. A dynamically balanced flywheel also helps reduce vibration and noise while cutting.
The cutting blades are made from special hardened steel and are designed for cutting small and large diameter steel rods. The machine also has sheet metal components that provide protection against rust and support longer machine use.
Features Made for Site Work
- Design developed with attention to machine safety
- Double-stage helical gearbox
- Heat-treated and precision-ground helical gears
- Dynamically balanced flywheel
- Special hardened steel cutting blades
- Custom DOL starter with over-voltage and under-voltage protection
- Reverse rotation prevention
- Sheet metal construction for protection against rust
- Wheels for easier movement around the construction site
- Designed for lower vibration and noise during cutting
SCM 42 Technical Details
| Model | SCM 42 |
|---|---|
| Voltage | 380 V |
| Power | 3.7 kW (5.0 HP) |
| Motor Speed | 2900 RPM |
| Capacity | 87 strokes per minute |
| Automation Grade | Semi Automatic |
| Weight | 449 kg |
Cutting Capacity by Bar Grade
The cutting capacity depends on the bar diameter and grade. The supplied capacity chart covers FE 500, FE 500D, FE 550D and FE 500S bars. The figures below show the number of bars covered for each diameter.
| Bar Grade | 36 mm | 32 mm | 25 mm | 20 mm | 16 mm | 12 mm | 10 mm | 8 mm |
|---|---|---|---|---|---|---|---|---|
| FE 500 | - | 1 | 1 | 1 | 2 | 3 | 4 | 5 |
| FE 500D | - | 1 | 1 | 1 | 2 | 3 | 3 | 4 |
| FE 550D | - | 1 | 1 | 1 | 2 | 3 | 3 | 4 |
| FE 500S | - | 1 | 1 | 1 | 2 | 3 | 3 | 4 |
We manufacture and supply the SCM 42 Bar Cutting Machine in Ahmedabad, Gujarat, for reinforcement and construction work. If you know the bar diameter and grade used at your site, share those details with us. We'll provide the relevant information to help you check the machine for your application.
