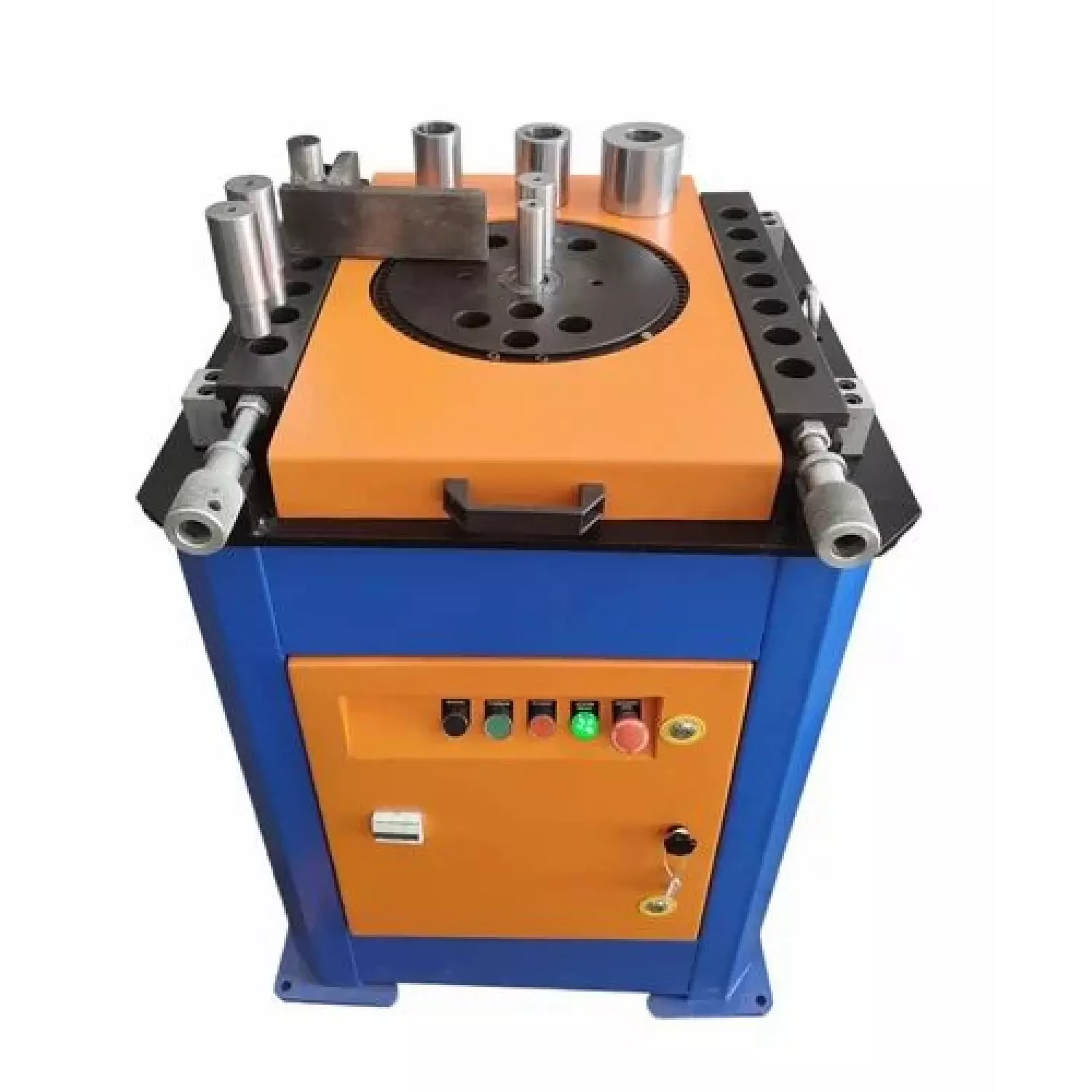

Reinforcement 55 Bar Bending Machine
Reinforcement 55 Bar Bending Machine Details
Heavy reinforcement work demands more than bending force alone; the machine must remain stable while processing repeated batches of TMT bars. The Reinforcement 55 Bar Bending Machine is designed around this requirement, combining a 5.5 kW (7.5 HP) motor, a 500 mm bend wheel and a rigid construction intended for demanding fabrication environments. This SBM55 model is suited to reinforcement preparation work where dependable bending performance and consistent handling are important.
Designed for Strong, Controlled Reinforcement Bending
The machine body incorporates strengthened vertical and horizontal members to improve rigidity during bending operations. Its sheet-metal components are manufactured using CNC punching and bending, while advanced CNC laser cutting, CNC turning and VMC processes are used for machine-part production. This manufacturing approach supports accurate component formation and a robust overall structure.
Performance Features for Demanding Workloads
- Heavy-duty construction designed to withstand loads generated during bar bending.
- 5.5 kW (7.5 HP) motor for demanding reinforcement processing.
- 500 mm bend wheel diameter for substantial bending applications.
- Heavy-duty planetary gearbox filled with synthetic grease.
- Under-voltage and over-voltage protection for enhanced electrical safety.
- Maintenance-free electrical braking system for controlled stopping.
- Rigid sliding block with V-guide for improved stability and ruggedness.
- Fully enclosed IP55 foot pedal for practical and protected operation.
- Low-noise and low-vibration operation for a more comfortable workplace.
- Powder-coated machine body offering improved surface protection and appearance.
- User-friendly operation with a design focused on long service life.
SBM55 Specifications at a Glance
| Parameter | Specification |
|---|---|
| Model | SBM55 |
| Bend Wheel Speed | 5 RPM |
| Motor Power | 5.5 kW (7.5 HP) |
| Bend Wheel Diameter | 500 mm |
| Dimensions (L × W × H) | 925 × 1200 × 1210 mm |
| Machine Weight | 500 kg |
Bar Capacity for Different TMT Grades
The capacity chart provides a practical reference for selecting the number of bars according to diameter and steel grade. For TMT FE 500, the machine accommodates up to 2 bars of 25 mm and 20 mm, 3 bars of 16 mm, 5 bars of 12 mm, 7 bars of 10 mm and 8 bars of 8 mm in the specified configuration. Similar capacity information is available for FE 500D and higher-strength TMT grades.
| TMT Grade | 40 mm | 36 mm | 32 mm | 25 mm | 20 mm | 16 mm | 12 mm | 10 mm | 8 mm |
|---|---|---|---|---|---|---|---|---|---|
| FE 500 | 1 | 1 | 1 | 2 | 2 | 3 | 5 | 7 | 8 |
| FE 500D | 1 | 1 | 1 | 2 | 2 | 3 | 5 | 7 | 8 |
| FE 550-FE 600 | 1 | 1 | 1 | 2 | 2 | 3 | 4 | 6 | 8 |
For reinforcement fabrication requirements in Ahmedabad and across Gujarat, the SBM55 can be evaluated according to bar diameter, grade and expected workload. Contact us to discuss specifications, availability and the right configuration for your application.
