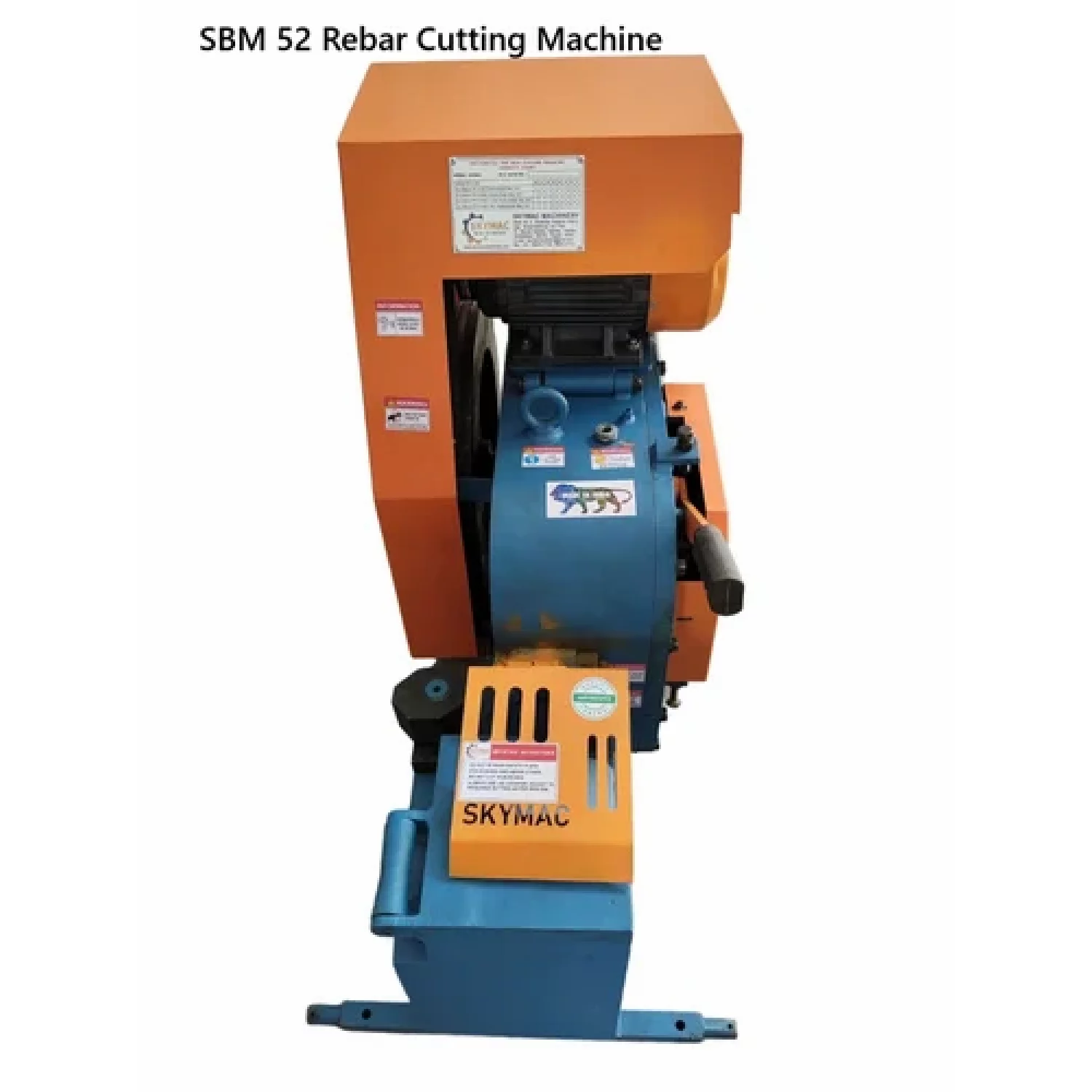

SCM 52 Rebar Cutting Machine
SCM 52 Rebar Cutting Machine Details
Bar cutting work can become slow when the machine isn't suited to the bar sizes being handled every day. Our SCM 52 Rebar Cutting Machine is made for regular reinforcement work, with a 5 HP power setup, hardened cutting blades and a gearbox arrangement built for repeated cutting. We manufacture and supply this model in Ahmedabad for construction and rebar preparation requirements.
A solid machine for everyday reinforcement cutting
The SCM 52 is designed around the practical needs of bar cutting work. Its cutting blade and disc are both 4 inches, while the machine uses a double-stage helical gearbox. The gears go through heat treatment and precision grinding for smooth movement during operation.
A dynamically balanced flywheel helps keep vibration and noise lower while cutting. The cutting blades are made from special hardened steel and are designed for cutting small and large diameter steel rods.
Details that support regular site operation
- Double-stage helical gearbox design
- Precision-ground and heat-treated gears
- Dynamically balanced flywheel for reduced vibration
- Special hardened steel cutting blades
- DOL starter with over-voltage and under-voltage protection
- Reverse rotation prevention
- Sheet metal components for protection against rust
- Wheels for easier machine movement on site
- Design developed with focus on rugged and low-maintenance operation
SCM 52 machine specifications
| Parameter | Specification |
|---|---|
| Model | SCM 52 |
| Cutting Blade Size | 4 Inch |
| Cutting Disc Size | 4 Inch |
| Power Consumption | 5 HP |
| Warranty | 1 Year |
| Brand | Skymac Machinery |
| Country of Origin | Made in India |
Bar capacity at a glance
The SCM 52 capacity chart covers bar diameters from 8 mm to 40 mm. The number of bars handled in one operation changes according to the bar diameter and grade. The figures below can help you check the basic capacity before selecting the machine for your work.
| Bar Dia (mm) | FE 500 | FE 500D | FE 550D | FE 500S |
|---|---|---|---|---|
| 40 | - | - | - | - |
| 36 | 1 | 1 | 1 | 1 |
| 32 | 1 | 1 | 1 | 1 |
| 25 | 1 | 1 | 1 | 1 |
| 20 | 2 | 2 | 2 | 2 |
| 16 | 2 | 2 | 2 | 2 |
| 12 | 3 | 3 | 3 | 3 |
| 10 | 4 | 3 | 3 | 3 |
| 8 | 5 | 4 | 4 | 4 |
We supply the SCM 52 Rebar Cutting Machine from Ahmedabad for customers across Gujarat. If you have a specific bar diameter, TMT grade or cutting requirement, share the details with us. We'll provide the relevant machine information and help you check the suitable capacity.
Related Products
SCM 42 Rebar Cutting Machine
When reinforcement work involves repeated bar cutting, the machine needs to stay steady and ready for regular use. We ma... Continue

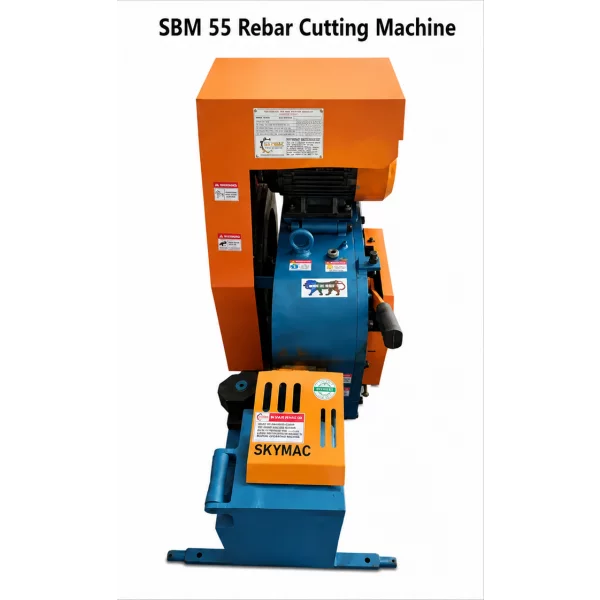

SCM 55 Rebar Cutting Machine
