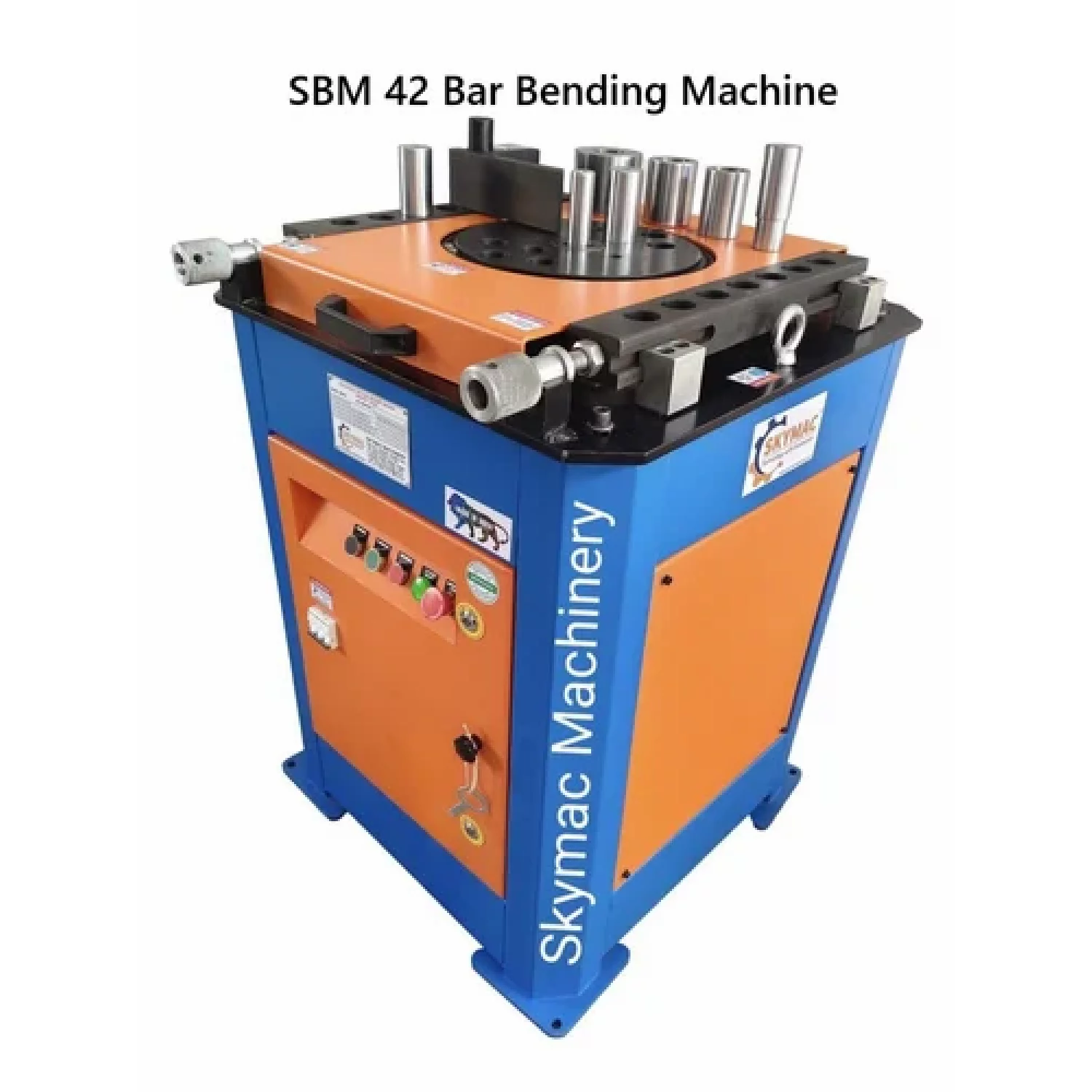

SBM 42 Bar Bending Machine
SBM 42 Bar Bending Machine Details
Bar bending work can become repetitive when a construction project requires the same type of reinforcement work again and again. Our SBM 42 Bar Bending Machine is made for such working conditions, with a steel body, reinforced frame design and a 3.7 kW (5 HP) motor. We manufacture and supply this model from Ahmedabad, Gujarat, for customers looking for a practical machine for regular rebar bending work.
Designed Around a Stronger Machine Frame
We have increased the size of the vertical and horizontal members in the body frame to make the structure more robust and steady during bending operations. The machine body is manufactured from steel, while sheet metal parts are made using CNC punching and bending processes.
For machine components, we use CNC laser cutting, CNC turning and VMC manufacturing processes. The body is completely powder coated, giving the machine a better surface finish and protection during regular use.
Key Features for Regular Site Operation
- Robust frame designed to handle load during bending operations
- Heavy-duty planetary gearbox filled with synthetic grease
- Under-voltage and over-voltage protection
- Maintenance-free electrical braking system
- Fully enclosed IP55 foot pedal
- Rigid sliding block with V-guide
- Low-noise and low-vibration operation
- Easy operation for regular bending work
- Powder-coated machine body
- Machine design focused on long service life
SBM 42 Specifications
| Model | SBM42 |
|---|---|
| Automation Grade | Manual |
| Body Material | Steel |
| Machine Dimensions | 810 x 710 x 970 mm (L x W x H) |
| Motor Power | 3.7 kW (5 HP) |
| Bend Wheel Speed | 9 RPM |
| Bend Wheel Diameter | 350 mm |
Bar Capacity for Different Grades
The SBM 42 capacity varies with bar diameter and steel grade. The following figures provide the available bar combinations shared for FE 500, FE 500D, FE 550D and FE 500S grades.
| Bar Grade | 36 mm | 32 mm | 25 mm | 20 mm | 16 mm | 12 mm | 10 mm | 8 mm |
|---|---|---|---|---|---|---|---|---|
| FE 500 | - | 1 | 1 | 1 | 2 | 3 | 4 | 6 |
| FE 500D | - | 1 | 1 | 1 | 2 | 3 | 4 | 5 |
| FE 550D | - | 1 | 1 | 1 | 2 | 3 | 4 | 5 |
| FE 500S | - | 1 | 1 | 1 | 2 | 3 | 4 | 5 |
From our manufacturing base in Ahmedabad, Gujarat, we supply the SBM 42 Bar Bending Machine for construction and reinforcement applications. If you have a specific bar diameter, grade or bending requirement, share the details with us. We'll provide the relevant machine information and help you check whether the SBM 42 matches your work.
